Single-Phase Platform-Type Transformer Supply Project
This project involved the supply of a 333 kVA single-phase oil-immersed distribution transformer designed for platform-supported pole-mounted installation.The transformer was manufactured for a public distribution application and delivered in 2024 to support medium-voltage distribution requirements. The unit was designed with a platform-type structure to accommodate its rated capacity and installation constraints, ensuring mechanical stability and […]
Application
Array
Rated Voltage

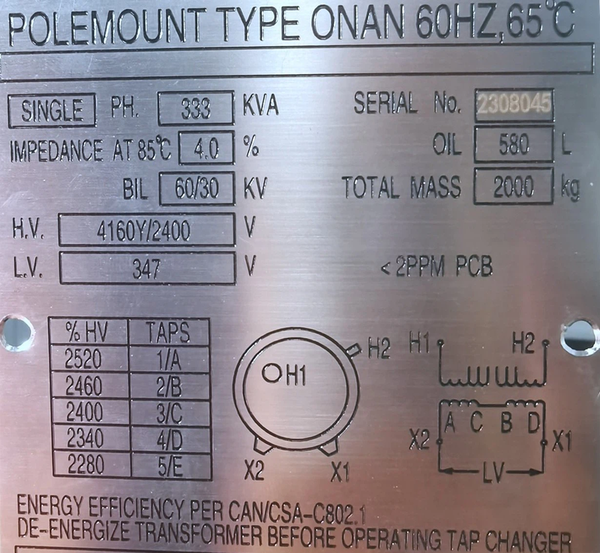

HV: 4.16Y / 2.4 kV LV: 0.347 kV
Rated Capacity
333 kVA
Transformer Type
Single-Phase, Oil-Immersed Platform-Type Distribution Transformer
Project Background
The project required a single-phase distribution transformer with higher-than-standard capacity for pole-mounted applications.
Due to the transformer’s weight and rating, a platform-supported installation design was selected to ensure safe mounting and long-term mechanical stability.
The transformer was required to operate under outdoor conditions and align with the existing medium-voltage distribution parameters, including voltage level, impedance, and tapping configuration.
Due to the transformer’s weight and rating, a platform-supported installation design was selected to ensure safe mounting and long-term mechanical stability.
The transformer was required to operate under outdoor conditions and align with the existing medium-voltage distribution parameters, including voltage level, impedance, and tapping configuration.
Key Challenges
- Higher rated capacity requiring platform-supported pole installation.
- Mechanical and structural considerations due to transformer weight.
- Electrical parameter alignment with existing distribution infrastructure.
Scope of Work
- Confirmation of electrical ratings and installation requirements.
- Platform-type structural design for pole-mounted application.
- Manufacturing of single-phase oil-immersed distribution transformer.

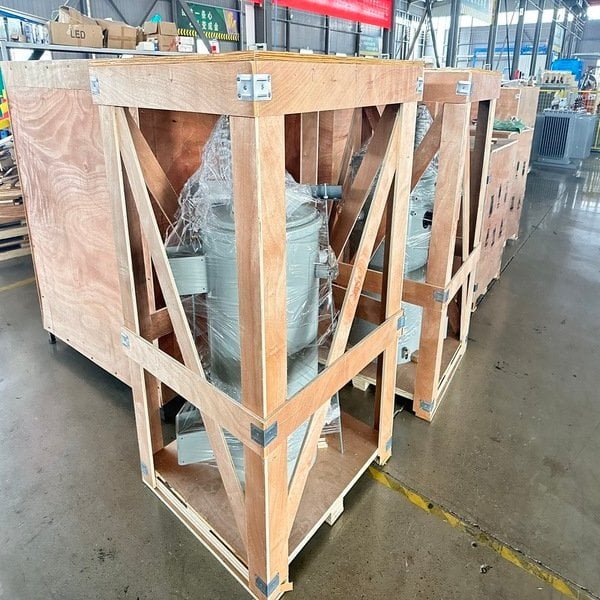

- Routine factory testing and preparation for shipment prior to delivery.
On-Site Gallery
Engineering Considerations
The transformer was designed with an ONAN cooling system and a sealed oil-immersed structure to support continuous outdoor operation.
Electrical design considerations included impedance control, tapping range configuration, and load loss optimization, ensuring compatibility with the existing distribution network.

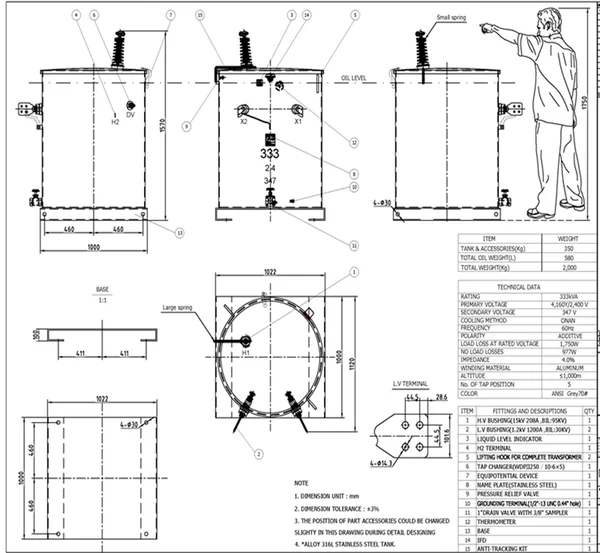

A platform-type structure was incorporated to support the transformer’s rated capacity and total weight while maintaining compliance with applicable installation practices.
Electrical design considerations included impedance control, tapping range configuration, and load loss optimization, ensuring compatibility with the existing distribution network.
A platform-type structure was incorporated to support the transformer’s rated capacity and total weight while maintaining compliance with applicable installation practices.
Project Outcome
The transformer was manufactured and delivered in accordance with the confirmed technical requirements.
Routine testing was completed prior to shipment, and the unit was supplied with the necessary documentation to support installation and commissioning by the utility.
Routine testing was completed prior to shipment, and the unit was supplied with the necessary documentation to support installation and commissioning by the utility.
