200 kVA 0.525/0.55–0.38 kV Oil-Immersed Distribution Transformer Project
This project involved the manufacturing of a 200 kVA, three-phase, oil-immersed distribution transformer designed with a dual primary voltage configuration of 0.525 / 0.55 kV and a secondary voltage of 0.38 kV. The transformer was developed in accordance with IEC 60076 and configured for standard low-voltage distribution applications. The unit adopts ONAN cooling, copper windings, […]
Application
Array
Rated Voltage
0.525 | 0.55 kV / 0.38 kV
Rated Capacity
200 kVA
Transformer Type
Three-Phase Oil-Immersed Distribution Transformer
Project Background
This project focused on the manufacturing of a low-voltage oil-immersed distribution transformer with dual primary voltage options, intended to support flexible system configuration during installation.
The design emphasized stable electrical characteristics, compact structure, and standard IEC compliance, making the transformer suitable for common distribution environments where voltage selection flexibility is required.
The design emphasized stable electrical characteristics, compact structure, and standard IEC compliance, making the transformer suitable for common distribution environments where voltage selection flexibility is required.
Key Challenges
- Integrating dual primary voltage (0.525 / 0.55 kV) within a compact transformer structure
- Maintaining stable impedance and vector group configuration
- Controlling no-load and load losses within a small-capacity oil-immersed unit
Scope of Work
- Electrical parameter confirmation based on IEC 60076

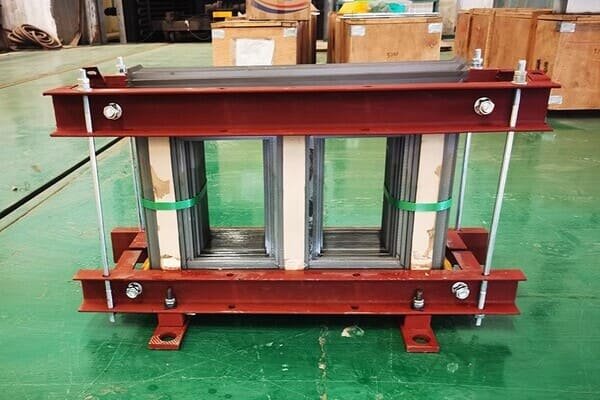

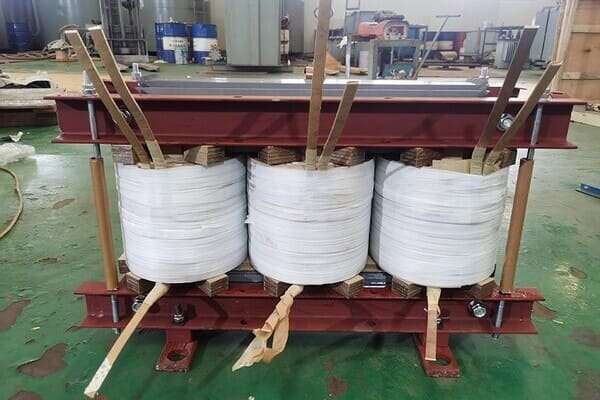

- Core stacking and three-phase copper winding manufacturing
- Active part assembly and tank installation
- Routine factory testing & Packaging and shipment preparation

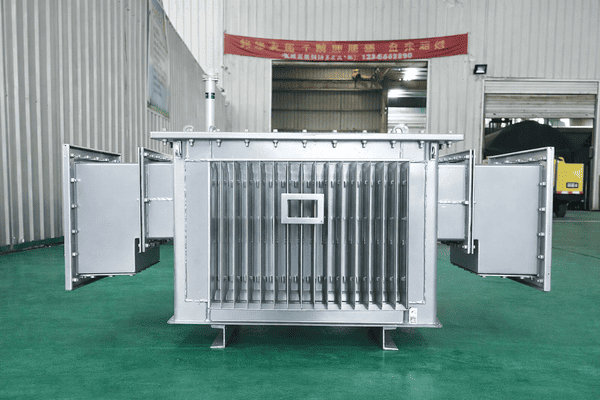

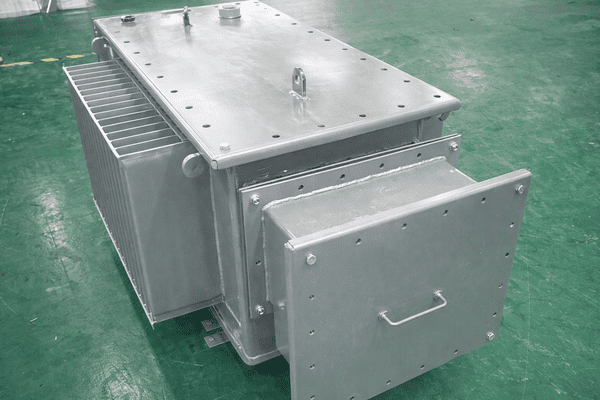

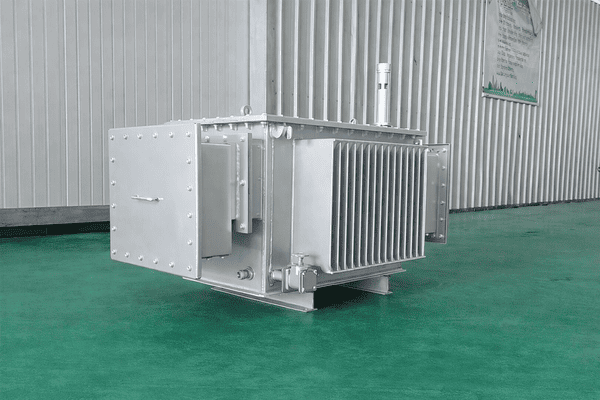

On-Site Gallery
Engineering Considerations

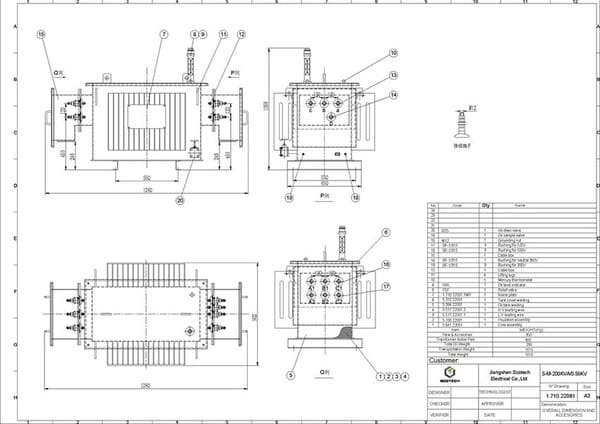

The transformer was engineered with a Yyn0 vector group and an impedance of 4.0%, ensuring compatibility with low-voltage distribution requirements. A dual primary voltage design was implemented using two groups of bushings, allowing selection between 0.525 kV and 0.55 kV during installation.
Loss performance was controlled with no-load loss of 0.48 kW and load loss of 3.1 kW, supporting efficient operation within its rated capacity. Copper windings were selected to enhance electrical stability and service life.
Loss performance was controlled with no-load loss of 0.48 kW and load loss of 3.1 kW, supporting efficient operation within its rated capacity. Copper windings were selected to enhance electrical stability and service life.
Project Outcome
The transformer was successfully manufactured and completed through standard factory processes, including assembly, oil filling, inspection, and routine testing.
The finished unit met the confirmed technical specifications and was prepared for packaging and delivery as a reference manufacturing project for oil-immersed distribution transformers.
The finished unit met the confirmed technical specifications and was prepared for packaging and delivery as a reference manufacturing project for oil-immersed distribution transformers.
