Pad-Mounted Transformer Substation (ANSI Type)

33 kV 1000 kVA Three-Phase Pad-Mounted Transformer Substation

Technical Highlights

Rated Capacity 1000 kVA
High Voltage 33 kV
Frequency 50 Hz / 60 Hz
Cooling Method ONAN
Insulating Medium Mineral Oil
Conductor Material Copper, Aluminum
Standard ANSI / IEEE
Discuss Your Requirement
Custom Specs Available
Ships Worldwide

The 33 kV 1000 kVA three-phase pad-mounted transformer substation is designed for medium-voltage power distribution in utility and commercial networks where compact installation, outdoor operation, and safe front-access maintenance are required. It integrates the distribution transformer with dedicated HV and LV compartments in a single ground-mounted enclosure, suitable for utility distribution feeders, industrial parks, and small-to-medium EPC projects. Designed to meet ANSI / IEEE requirements, internal configuration can be adapted based on project specifications, including secondary voltage, protection arrangement, and accessory options.

Related Solutions

Substation Upgrade & Replacement Solutions

Designed for substation upgrades and replacements with minimal outage, controlled risk, and compatibility with existing…

Learn more

Yeeg Transformer Advantage

  • Compliance with IEC / IEEE utility standards as required by project
  • Project-based engineering support and parameter confirmation
  • OEM / ODM manufacturing partner for utility and EPC contractors

Need quick technical clarification?

Chat on WhatsApp
Or email: sales@yeegtransformer.com

You May Also Be Interested In

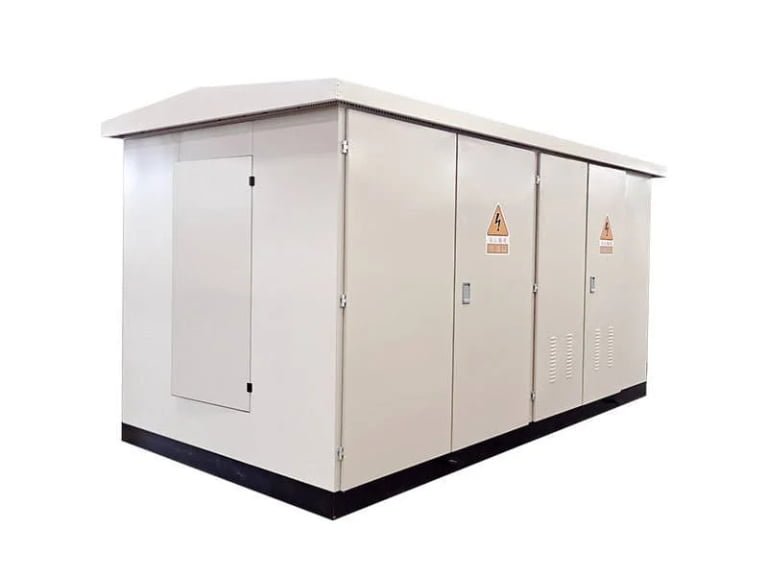

Compact Box-Type Substation for EPC & Infrastructure Projects
