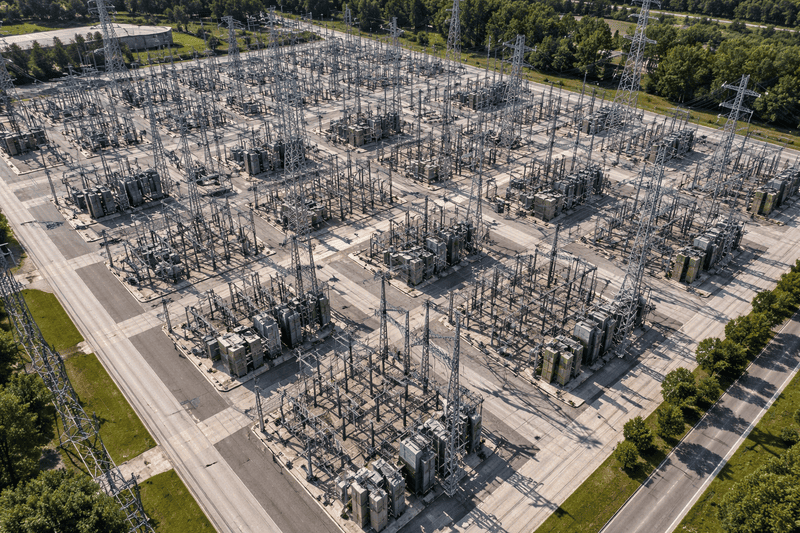

How Do You Correctly Evaluate Transformer Capacity for a Grid Expansion?

Choosing the wrong transformer capacity for a grid expansion is a critical error. Under-sizing leads to overloads and failures, causing costly downtime. Over-sizing wastes capital on an underutilized, inefficient asset that inflates operational costs for years.

To correctly evaluate transformer capacity, you must perform a detailed load analysis, apply realistic diversity factors, convert the load from kW to kVA, and then size the unit to accommodate future growth while operating within its most efficient load range of 75-90%.

This process seems straightforward, but I have seen many projects where small oversights in these early stages lead to major problems in the field. As an engineer who designs and builds these units, I help project managers translate paper calculations into reliable, long-lasting hardware. Let’s walk through the practical steps I use to get it right every time.

How Do You Calculate the Real Load a Transformer Will See?

Simply adding up the nameplate power¹ of every device is a common but flawed approach. It assumes everything runs at full power simultaneously, a scenario that almost never happens. This method leads to a grossly oversized and inefficient transformer.

To calculate the real load, you must move beyond the "connected load" by applying demand and diversity factor²s. This systematic process converts a theoretical maximum into a realistic "calculated load³," which reflects the actual peak power the transformer will need to supply.

![Engineer analyzing electrical load data on a tablet in front of a switchgear](https://yeegtransformer.com/wp-content/uploads/2026/02/Engineer-analyzing-electrical-load-data-on-a-tablet-in-front-of-a-switchgear.pn”Calculating True Electrical Load")

An Engineer’s Breakdown of Load Calculation

A precise load calculation is the bedrock of proper transformer sizing. When I work with a client’s engineering team, we spend significant time here to avoid expensive assumptions. This is not a single calculation but a three-step refinement process.

Step 1: Sum the Total Connected Load

This is the raw data gathering. We list every single piece of equipment that will be powered by the transformer and sum their nameplate power ratings in kilowatts (kW). For a small industrial unit, this might be 200 kW. This is our theoretical, worst-case-scenario number.

Step 2: Apply Demand Factors for Realistic Consumption

No single piece of equipment runs at its full nameplate rating 100% of the time. A conveyor motor might only use 80% of its rated power under a normal load. This percentage is the demand factor. We apply this to each major load to find its individual maximum demand.

Our initial 200 kW load⁴ is already down to a more realistic 172.5 kW.

Step 3: Apply a Diversity Factor for Non-Simultaneous Use

Just as individual devices don’t always run at full power, not all devices run at the same time. The HVAC system might run hardest in the summer, while certain production machines run mainly in the winter. The diversity factor accounts for this.
Calculated Load (kW) = Sum of Individual Maximum Demands / Diversity Factor
For a mixed industrial load, a diversity factor of 1.25 is often a reasonable starting point.
Calculated Load = 172.5 kW / 1.25 = 138 kW
This final calculated load of 138 kW is the number we use for sizing. We’ve moved from an inflated 200 kW to a much more accurate 138 kW.

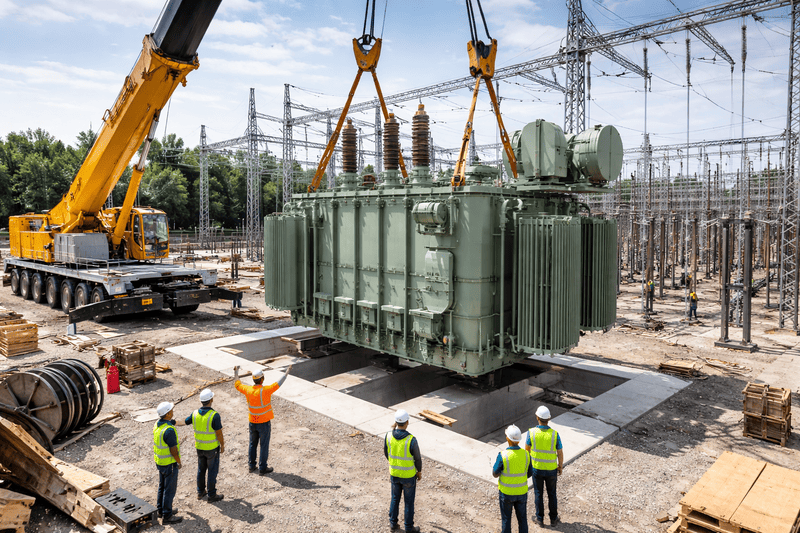

How Do You Size a Transformer for Both Today and Tomorrow?

You have an accurate load number, but choosing the next standard kVA size is shortsighted. This can lock you into a transformer that is too small in five years or one that wastes energy for decades. True sizing is about long-term value.

To size for the future, first convert your calculated kW load to kVA using the load’s power factor. Then, add a growth margin (typically 20-25%). Finally, select a standard transformer size where this projected peak load will be around 85% of the unit’s rated capacity.

The Engineering Behind Strategic Sizing

Sizing is a balance between initial capital cost and long-term operational cost and reliability. I guide clients to think about the Total Cost of Ownership (TCO)⁵, not just the purchase price.

First, we must convert our calculated real power (kW) to apparent power⁶ (kVA). The transformer must supply the full apparent power. Let’s use our 138 kW load and assume an average power factor of 0.85.
Load (kVA) = 138 kW / 0.85 = 162.4 kVA

Next, we plan for the future. An industrial plant or commercial development is not static. What is the expected load growth⁷ over the next 10 years? A 25% margin is a safe estimate for most applications.
Projected Load = 162.4 kVA × 1.25 = 203 kVA

Now, we select the physical transformer. A transformer’s efficiency is not flat. It has fixed no-load losses (core magnetization) and variable load losses (winding heat). Peak efficiency occurs when these two losses are best balanced, typically between 50% and 80% of full load. Running a transformer continuously at 100% is inefficient and accelerates aging. We therefore target a peak load of around 85% of the rating.
Target Transformer Rating = 203 kVA / 0.85 = 238.8 kVA

Looking at standard transformer sizes (225 kVA, 300 kVA), the correct engineering choice is the 300 kVA unit. This ensures that even with 25% growth, the transformer will operate below 85% of its capacity, maximizing its lifespan and efficiency.

How Can You Safely Verify a Transformer’s Live Load?

An installed transformer can operate for years without obvious problems, yet it could be silently overheating from a creeping load. Waiting for a thermal failure is not a strategy. You need a proactive and safe way to check its operational health.

The safest method is to use a calibrated clamp-on ammeter on the secondary output conductors. This task must be performed by a qualified technician wearing the appropriate arc flash PPE. The measured current is then compared against the transformer’s nameplate Full Load Amps (FLA)⁸.

A Field Guide to Live Load Verification

Verifying the load on an operational transformer is a critical maintenance task where safety is non-negotiable. Before any tools are used, the technician must conduct a risk assessment and wear the correct Personal Protective Equipment (PPE), including an arc-rated face shield, insulated gloves, and flame-resistant clothing.

First, calculate the transformer’s maximum continuous current rating, or Full Load Amps (FLA), from its nameplate. For our 300 kVA transformer with a 480V secondary:
FLA = (300,000 VA) / (480 V × 1.732) = 360.8 Amps

The technician then clamps the ammeter around each secondary phase conductor during the facility’s peak operational hours. It’s crucial to measure all three phases to check for load imbalance. The highest reading is used for the loading calculation.
Loading % = (Highest Measured Amps / FLA) × 100

For more advanced diagnostics, I always recommend a follow-up with a thermal imaging camera⁹. An ammeter tells you the electrical load, but a thermal camera shows you the physical effect of that load. It can instantly reveal a loose, high-resistance connection at a bushing that is dangerously overheating, even if the overall load is well within limits. It’s an invaluable tool for preventative maintenance¹⁰.

Why Is Capacity Rated in kVA, Not the kW You Actually Use?

Project engineers often ask why they need to deal with kVA when their facility’s load is measured in kW. This isn’t just terminology; misunderstanding the difference can lead directly to specifying an undersized transformer that will fail prematurely.

A transformer’s capacity is rated in kVA (apparent power) because its physical limits are determined by the total current and voltage it handles, regardless of the load’s power factor. The kVA rating represents the transformer’s true power-handling ability, accounting for both useful power (kW) and reactive power¹¹ (kVAR).

The Physics Behind the kVA Rating

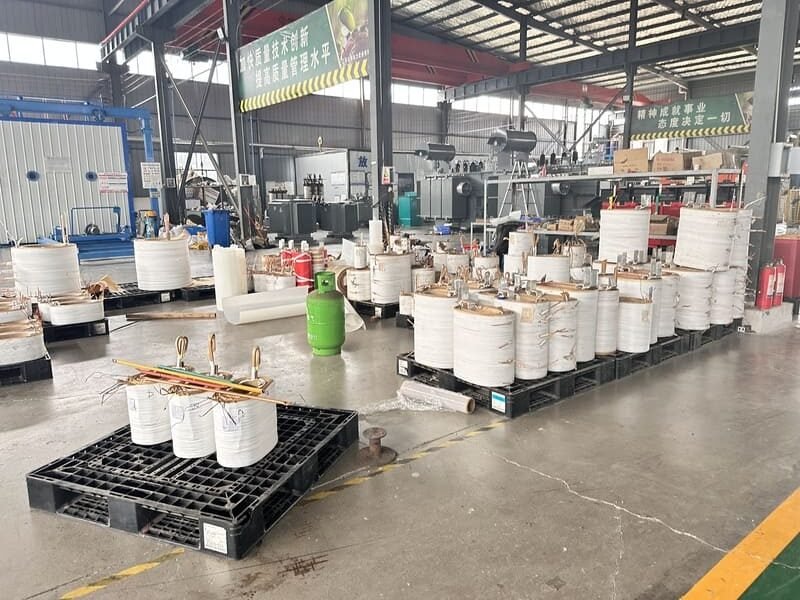

As a manufacturer, I design a transformer to withstand specific physical stresses that generate heat. The two main sources of heat are directly related to voltage and current, not power factor.

1. Winding Losses: Heat is generated in the copper or aluminum windings due to electrical resistance. This heat (I²R loss) is proportional to the square of the current (Amps) flowing through the wire. The current is a direct function of the kVA load, not the kW load. More current means more heat.

2. Core Losses: Heat is generated in the steel core from the continuous reversal of the magnetic field. This is a function of the system voltage and frequency.

Since I don’t control the power factor of your facility’s equipment, I cannot rate the transformer in kW. A 200 kW load with a power factor of 1.0 requires 200 kVA. But the same 200 kW load from motors with a poor power factor of 0.7 requires 200 / 0.7 = 286 kVA. The transformer for the second scenario needs windings and a cooling system designed to handle 43% more current, even though the useful work is identical. The kVA rating tells you the true size of the electrical "pipe" you are buying. Furthermore, modern loads with high harmonic content¹² from VFDs or LED lighting can cause additional heating. For these applications, we may need to use a larger standard transformer or a specially designed K-factor rated unit.

Conclusion

Correctly evaluating transformer capacity is a systematic process. It requires moving beyond simple assumptions to perform a realistic load calculation, strategically sizing for future needs and efficiency, and verifying performance through safe field measurements.
